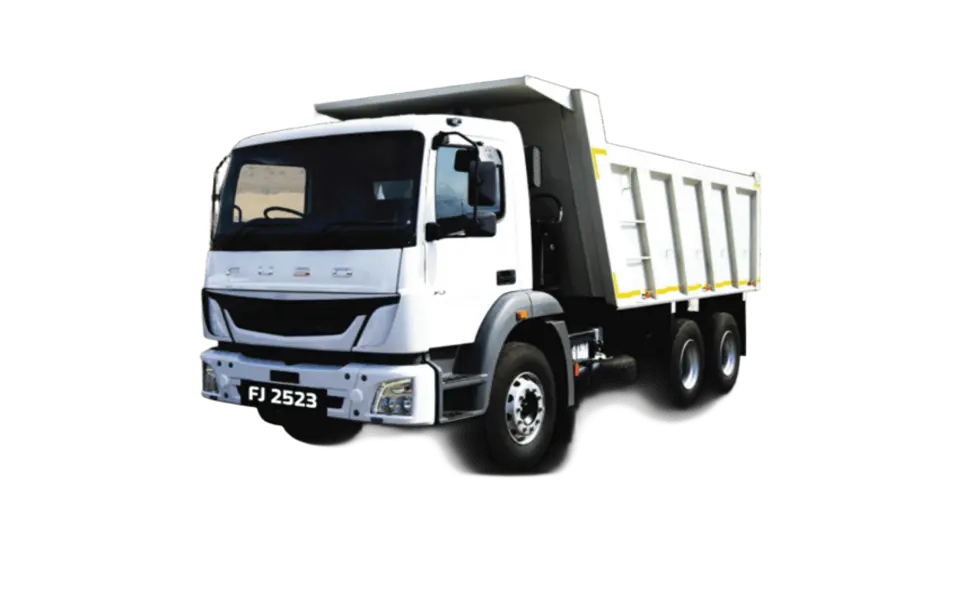

About FUSO FJ2523C 6×4 Tipper Cabin & Chassis

10X Magnificent

The FUSO FJ2523C 6×4 Tipper Cabin & Chassis is a rugged and powerful workhorse, purpose-built for the demands of construction, mining, and other heavy-duty applications. With a 6x4 drivetrain, high ground clearance, and reinforced suspension, this truck is designed to handle rough terrain while carrying massive loads. It features a robust turbo diesel engine, full air braking system, and a durable tipper body. Ideal for transporting gravel, sand, or rocks, the FJ2523C is trusted in Kenya’s toughest work environments for its endurance, reliability, and efficiency.

 FUSO FJ2523C 6×4 Tipper Cabin & Chassis

Showroom Price:

Ksh 0

Detailed Information

Engineered for rugged performance, this tipper truck comes with a factory-fitted tipper body specifically designed for hauling heavy construction materials. Built on a reinforced chassis frame, it delivers exceptional durability to withstand the toughest job site conditions. The 6x4 drive configuration provides superior off-road traction, ensuring reliable operation even on challenging terrain.

Key Features:

  • Large payload capacity optimized for construction and mining applications

  • Multi-leaf spring suspension with shock absorbers for smooth load handling

  • Full air braking system delivering reliable stopping power

  • Hydraulic tipping mechanism for efficient material unloading

  • Heat-resistant paint with corrosion protection for long-term durability

The comfortable and ergonomic cabin is designed for operator comfort during extended work hours, while safety features including wide side mirrors and reverse horn help prevent jobsite accidents. This robust tipper truck combines power, durability and operator comfort to maximize productivity in heavy construction applications.

Variations

Our Product Variations

Key Specs

  • 1
    Transmission Type

    6-speed Manual

  • 2
    Drive Type

    6x4 (Dual Rear Axles Driven)

  • 3
    Seating Capacity

    3 (Driver + 2 passengers)

  • 1
    Gross Vehicle Weight

    25,000 kg

  • 2
    Kerb Weight

    9,200 kg

  • 3
    Payload Capacity

    15,800 kg

  • 1
    Length

    7800 mm

  • 2
    Width

    2490 mm

  • 3
    Height

    2950 mm

  • 4
    Wheelbase

    4270 mm

  • 5
    Ground Clearance

    250 mm

  • 1
    Engine Type

    6S20 Turbocharged Diesel

  • 2
    Displacement

    6,374 cc

  • 3
    Power

    230 hp @ 2,200 rpm

  • 4
    Torque

    810 Nm @ 1,2001,600 rpm

  • 5
    Fuel Tank Capacity

    200 Litres

  • 1
    Chassis Type

    Ladder Frame (Reinforced)

  • 2
    Suspension

    Multi-leaf spring with shock absorbers

  • 3
    Steering

    Hydraulic Power Steering

  • 1
    Front Brakes

    Full Air Brakes

  • 2
    Rear Brakes

    Full Air Brakes

  • 1
    Tyres

    11.00 R20 16 PR

  • 2
    Wheels

    Steel

  • 3
    Cabin Type

    Day Cabin

  • 4
    Body Type

    Tipper Cabin & Chassis

  • 5
    Safety

    Seat belts, reverse horn, air brakes, anti-roll bar
