Home Disc Ridger

About Disc Ridger

10X Magnificent

The Disc Ridger is a high-efficiency implement designed for forming uniform ridges during land preparation. It is especially useful for planting row crops such as maize, potatoes, sugarcane, and other horticultural crops.

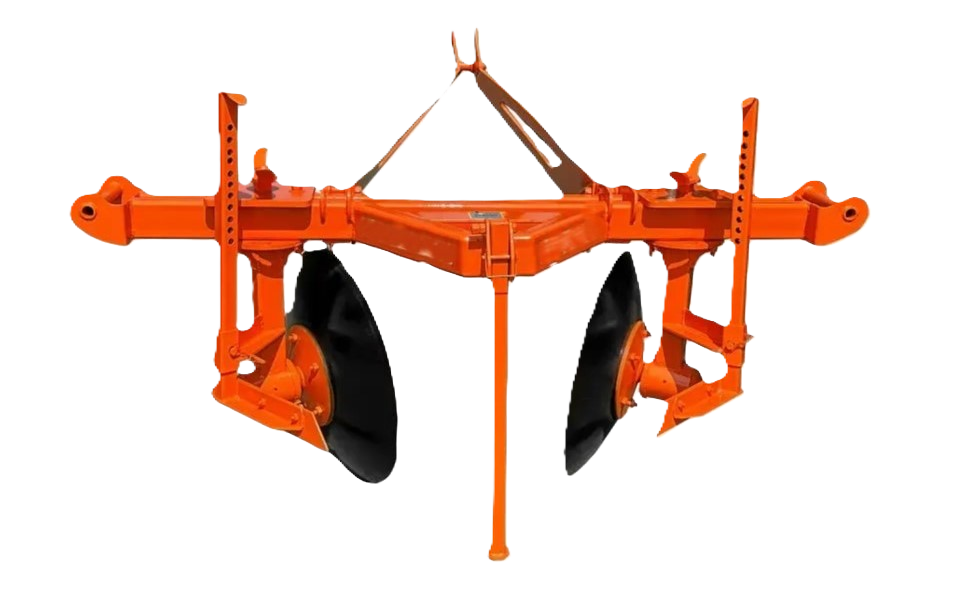

Built with two concave discs mounted on a heavy-duty frame, the disc ridger cuts, turns, and forms soil into neat ridges in a single pass. The adjustable disc angle and spacing allow the farmer to control the ridge height and row spacing to match crop requirements.

Compatible with tractors ranging from 45 to 75 HP, this tool boosts productivity and ensures consistent field outcomes.

Disc Ridger
General Logo
Overview Detailed Information Variations Specifications Gallery

Showroom Price:

Ksh 0

Detailed Information

  • Heavy-duty frame for rough field use

  • Two concave discs made from hardened steel

  • Adjustable row spacing and disc angles

  • Category II 3-point linkage

  • Corrosion-resistant finish

  • Ideal for wet and dry field conditions

Key Specs

  • 1
    No. of Discs

    2

  • 2
    Disc Diameter

    2628 inches

  • 3
    Working Width

    Adjustable (600900 mm)

  • 4
    Tractor HP Required

    4575 HP

  • 5
    Mounting Type

    3-point, Category II

  • 1
    Implement Weight

    200220 kg

  • 1

  • 1
    Operating Speed

    46 km/h

  • 2
    Field Efficiency

    0.71.0 ha/hr

  • 1
    Frame Material

    Reinforced tubular steel

  • 1

  • 1
    Adjustment Mechanism

    Manual

  • 2
    Finish

    Powder-coated

  • 3
    Maintenance

    Low maintenance with greased bearings

If you have any questions Please Call.

+2547 33 333 575
