Home 18 Disc Harrow Mounted Heavy Duty

About 18 Disc Harrow Mounted Heavy Duty

10X Magnificent

The 18 Disc Harrow Mounted Heavy Duty is a compact yet powerful tillage tool engineered for breaking hard clods, mixing crop residue, and improving soil aeration. It features 18 high-quality notched discs mounted on a strong frame for tractor compatibility via 3-point linkage.

This implement is well-suited for medium to large farms and delivers exceptional results when used with tractors in the 65–90 HP range. Whether you're preparing land after harvesting or performing secondary tillage, this disc harrow ensures speed and performance.

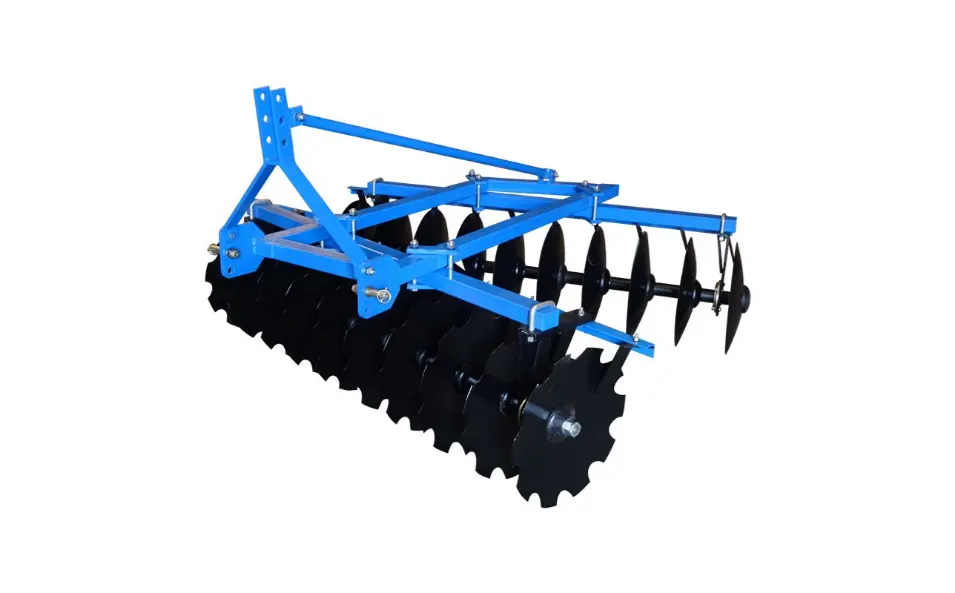

18 Disc Harrow Mounted Heavy Duty
General Logo
Overview Detailed Information Variations Specifications Gallery

Showroom Price:

Ksh 0

Detailed Information

  • 18 heat-treated notched discs for maximum penetration

  • Strong frame made of high-tensile steel

  • Easily mounted via 3-point linkage

  • Adjustable disc gang angles for varied tillage intensity

  • Low-maintenance bearings and sturdy axle setup

  • Ideal for dry and semi-wet soil conditions

Key Specs

  • 1
    Disc Count

    18

  • 2
    Disc Diameter

    2224 inches

  • 3
    Type

    Mounted

  • 4
    Tractor HP Required

    6590 HP

  • 5
    Linkage Type

    3-point, Category II

  • 1
    Implement Weight

    480520 kg

  • 1
    Length

    2,200 mm

  • 2
    Width

    1,800 mm

  • 3
    Height

    1,200 mm

  • 1
    Operating Speed

    46 km/h

  • 2
    Field Efficiency

    0.60.8 ha/hr

  • 1
    Frame Material

    Reinforced tubular steel

  • 1

  • 1
    Gang Angle Adjustment

    Manual

  • 2
    Paint Finish

    Rust-resistant powder coat

  • 3
    Maintenance

    Greaseable bearings included

If you have any questions Please Call.

+2547 33 333 575
