Home 5 Tyne Chisel Plough with Roller

About 5 Tyne Chisel Plough with Roller

10X Magnificent

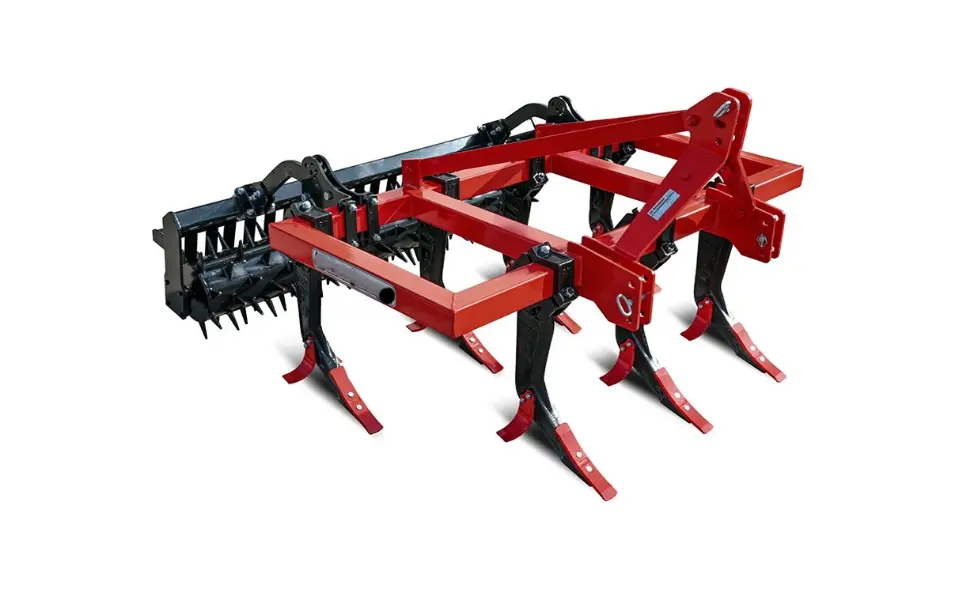

The 5 Tine Chisel Plough with Roller is engineered to perform deep tillage, break up hardpan, and improve soil aeration without inverting soil layers. It penetrates deep into the ground, breaking compact soil while preserving topsoil structure and moisture retention.

Fitted with a rear roller, this implement levels the soil post-tillage and ensures optimal seedbed preparation. The five strong curved tines deliver powerful shattering action ideal for medium to large-scale farms, especially in semi-arid and dry regions where soil compaction is common.

This chisel plough is tractor-mounted, designed for tractors with 60–100 HP, and features a durable, low-maintenance design suited for long-term field use.

5 Tyne Chisel Plough with Roller
General Logo
Overview Detailed Information Variations Specifications Gallery

Showroom Price:

Ksh 0

Detailed Information

  • 5 reinforced chisel tines

  • Integrated rear roller for levelling

  • Adjustable working depth

  • High-strength alloy steel frame

  • Compatible with Category II 3-point linkage

  • Designed for deep soil penetration

  • Ideal for 60–100 HP tractors

Key Specs

  • 1
    Number of Tines

    5

  • 2
    Type

    Mounted Chisel Plough

  • 3
    Working Width

    Approx. 1.5 meters

  • 4
    Tractor HP Required

    60100 HP

  • 5
    Mounting Type

    3-point linkage, Category II

  • 1
    Implement Weight

    Approx. 360 kg

  • 1

  • 1
    Working Depth

    1014 inches

  • 2
    Field Efficiency

    0.81.2 ha/hr

  • 1
    Frame Material

    Reinforced alloy steel

  • 1
    Roller Type

    Smooth/pipe-type roller

  • 2
    Finish

    Anti-corrosion powder coating

  • 3
    Maintenance

    Easy-to-replace tines
