Home 7 Tine Duck Foot Chisel with Roller

About 7 Tine Duck Foot Chisel with Roller

10X Magnificent

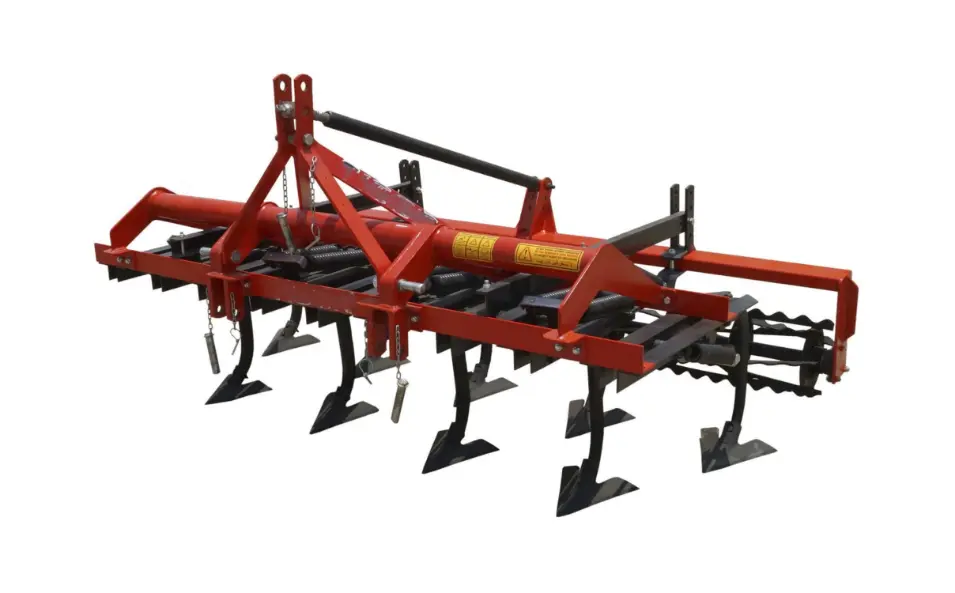

The 7 Tine Duck Foot Chisel with Roller is a heavy-duty implement built for effective deep tillage. It is ideal for breaking up hardpan soil layers, improving drainage, and enhancing root penetration. The duck foot shovels cut through compacted soil efficiently while the rear roller levels the surface for a refined seedbed.

This chisel plough is compatible with tractors ranging from 60 to 100 HP, making it perfect for medium to large-scale farms. The combination of high-grade steel tines and a rugged roller system ensures efficient soil breakup with minimal soil disturbance at the surface.

7 Tine Duck Foot Chisel with Roller
General Logo
Overview Detailed Information Variations Specifications Gallery

Showroom Price:

Ksh 0

Detailed Information

  • 7 duck foot tines with replaceable points

  • Rear roller for leveling and soil crumbling

  • High-tensile frame with powder-coated finish

  • Adjustable working depth

  • Suitable for tractors with 60–100 HP

  • Ideal for deep tillage in hard or compacted soils

Key Specs

  • 1
    No. of Tines

    7

  • 2
    Type

    Duck Foot Chisel with Roller

  • 3
    Working Width

    2.1 meters (approx.)

  • 4
    Tractor HP Required

    60100 HP

  • 5
    Mounting Type

    3-point linkage, Category II

  • 1
    Implement Weight

    Approx. 320 kg

  • 1
    Length

    2,200 mm

  • 1
    Field Efficiency

    0.91.3 ha/hr

  • 2
    Working Depth

    812 inches

  • 1
    Frame Material

    High-strength stee

  • 1
    Usage

    Deep tillage and surface finish

  • 2
    Maintenance

    Low, easy to service

  • 3
    Surface Finish

    Corrosion-resistant powder coat
